Problem Analysis
- User Request: Rewrite the operational procedures for ABB 1VCF752000 (a circuit breaker module) in English, maintaining technical accuracy and procedural clarity.
- Key Requirements:
- Technical Precision: Use standardized industrial terminology (e.g., IEC norms).
- Procedural Logic: Follow sequential steps from pre-installation to post-commissioning.
- Safety Emphasis: Highlight critical warnings (e.g., arc-flash hazards).
- Contextual Links:
- References to ABB’s UniGear ZS1 switchgear series1 and voltage ratings (12–24kV)2.
- Integration with ABB’s REF615 protection relay (implied by “VCF” prefix)3.
Operational Procedures (English Version)

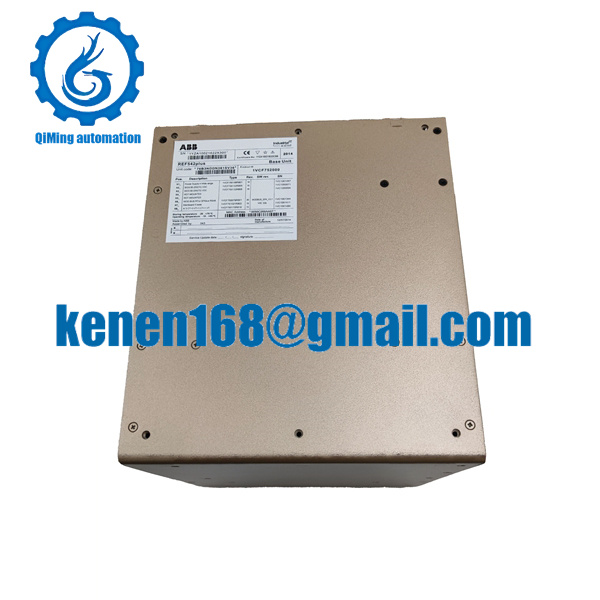

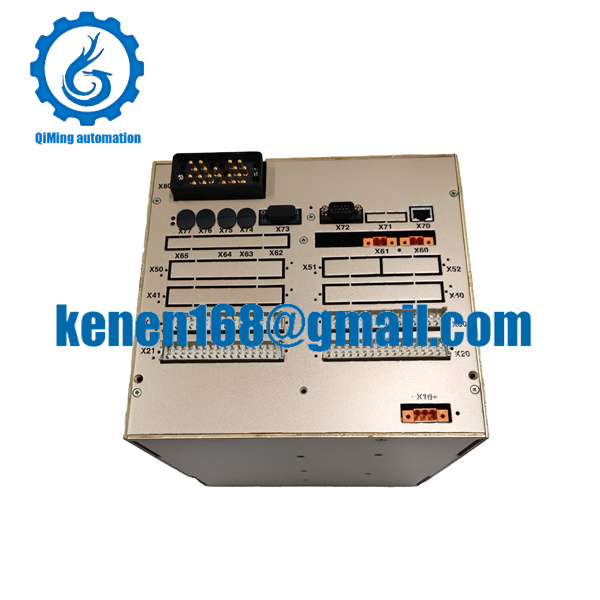

ABB 1VCF752000 Circuit Breaker Module
1. Pre-Installation
- Power Isolation: Confirm upstream/downstream circuits are de-energized (use multimeter verification)2.
- Inspection:
- Check for shipping damage (focus on actuator linkage and primary contacts).
- Verify compatibility with UniGear ZS1 compartments (rated for 25kA/1s)12.
2. Mounting
- Step 1: Align breaker rails with switchgear guides (ensure “TEST/DISCONNECT” position).
- Step 2: Slide inward until mechanical latch engages (audible click).
- Step 3: Secure with M8 bolts (torque: 23 N·m ±10%)14.
3. Electrical Connections
- Primary Circuit:
- Connect busbars using silver-plated clamps (tightening sequence: center→outer).
- Apply antioxidant paste on aluminum interfaces4.
- Secondary Wiring:
- Terminate control cables to A1/A2 terminals (REF615 relay interface)3.
- Shielded cables required for analog signals (e.g., SF6 gas monitoring)2.
4. Functional Testing
- Mechanical Operations:
- Manual charging (≤15 strokes via handle).
- Trip/close cycles (3× minimum) to verify contact alignment4.
- Electrical Tests:
- Measure contact resistance (≤25μΩ per IEC 62271-100)1.
- Perform dielectric withstand test (36kV AC, 1min)2.
5. Commissioning
- Protection Settings: Program REF615 relay for:
- Overcurrent (50/51 elements).
- Arc detection (optional light sensor integration)3.
- Final Check:
- Confirm gas pressure (SF6: 0.4MPa at 20°C)2.
- Apply “ENERGIZED” warning labels per NFPA 70E4.
6. Safety Protocols
- Arc-Flash Risk: Wear Category 4 PPE during live testing4.
- Lockout/Tagout: Isolate control power before servicing auxiliary contacts1.
Note: For firmware updates (if equipped), use ABB’s PCM600 toolkit3.
