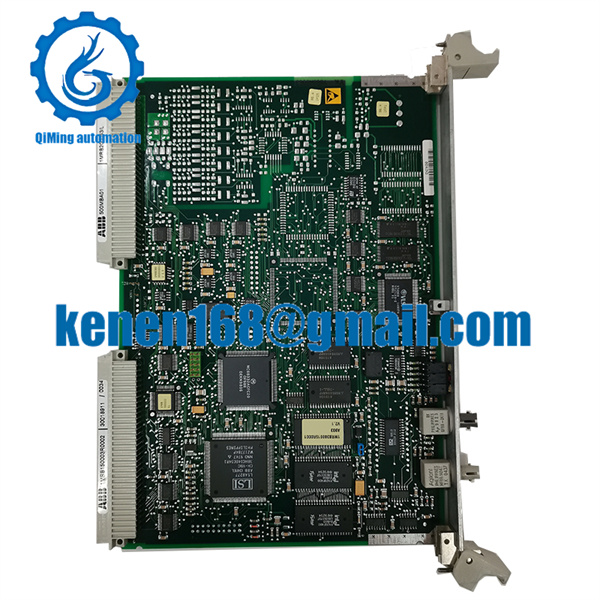

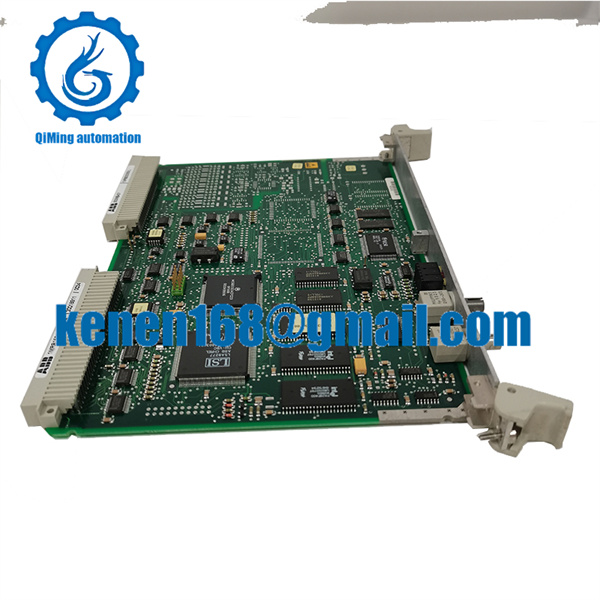

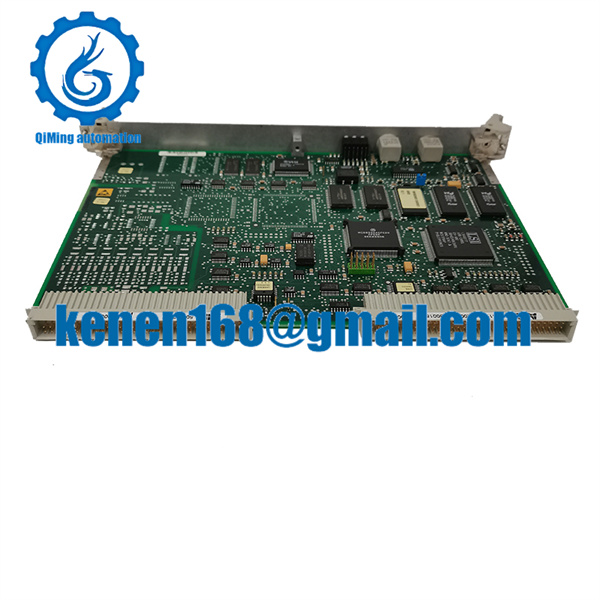

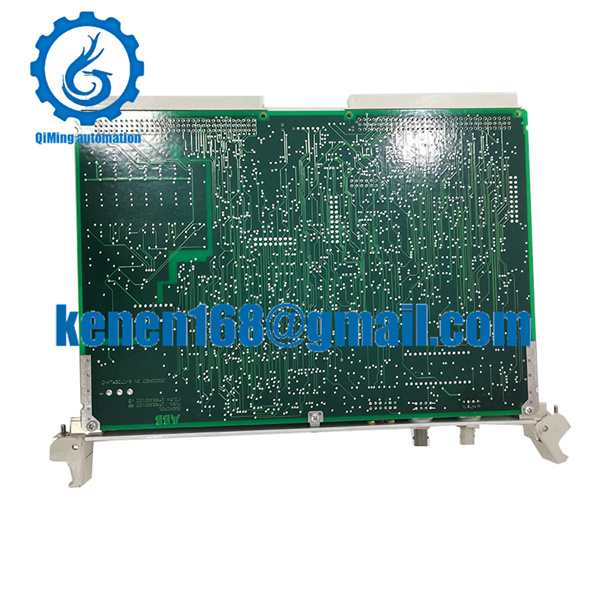

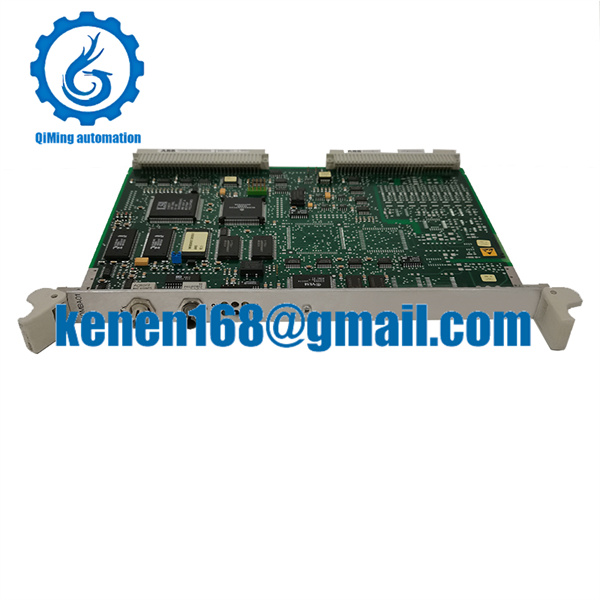

500MBA01  1MRB150003R0002 ABB CONTROL CARD

500MBA01   1MRB150003R0002   ABB CONTROL CARD

‌Trident System Architecture Overview‌
Modular Assembly Configuration

‌1. Assembly Composition‌
Each functional unit comprises:

• Field-replaceable module
• DIN rail-compatible baseplate
• Integrated backplane connector (IEC 60603-7 compliant)

‌2. Functional Categories‌

‌3. System Configuration Guidelines‌

• ‌Base Configuration‌:
  1×MP + 0-1×CM + ≤14×I/O (Standard)
  → Exception: Reduces to ≤10×I/O when analog output (AO) or pulse input (PI) modules are integrated

• ‌Mechanical Integration‌:

  • Mounting plate assembly (304 stainless steel)
  • Required components:
    • Interconnect assemblies (TR-IC-10)
    • Backplane extenders (TR-EX-15)
    • Shielded I/O bus cables (Belden 9501 equivalent)
    • Active bus terminators (120Ω ±1%)

‌4. Communication Architecture‌

• ‌Triple-redundant I/O Bus‌:
  • Protocol: RS-485 compliant with ANSI/TIA-485-A standard
  • Topology: Daisy-chained multidrop configuration
  • Technical Parameters:
    • 19.2 kbps to 10 Mbps selectable baud rate
    • 32-node addressing capacity
    • ±15kV ESD protection (IEC 61000-4-2 Level 4)

500MBA01   1MRB150003R0002   ABB CONTROL CARD

500MBA01   1MRB150003R0002   ABB CONTROL CARD

‌TriStation IEC 61131-3 Programming Language Suite‌
Industrial Control System Development Platform

‌Standards Compliance‌

• Certified adherence to:
  • IEC 61131-3 Ed.4 (Programmable Controllers – Programming Languages)
  • IEC 65A Type 3 Report methodology guidelines

‌Core Language Support‌

‌Extended Programming Methodology‌
• ‌Cause and Effect Matrix Programming Language Editor (CEMPLE)‌

• Automated CEM (Cause-Effect Methodology) implementation
• Features:
  1. Drag-and-drop matrix configuration
  2. Cross-tag dependency validation
  3. Auto-generated FBD/LD code synthesis

500MBA01   1MRB150003R0002   ABB CONTROL CARD

500MBA01   1MRB150003R0002   ABB CONTROL CARD

A single Trident controller supports up to two CMs on one CM Baseplate. Each CM operates independently and supports three RS-232/485 serial ports and two Ethernet ports. Two CMs can provide redundant communication connections or additional independent communication ports.The CM Baseplate should be connected directly above or below an MP Baseplate.Two MP Interconnect Assemblies are required to connect the MP Baseplate to the CM Baseplate. For more detailed information, see the Trident Communication
Guide.
