ABB REF542PLUS control and protection unit

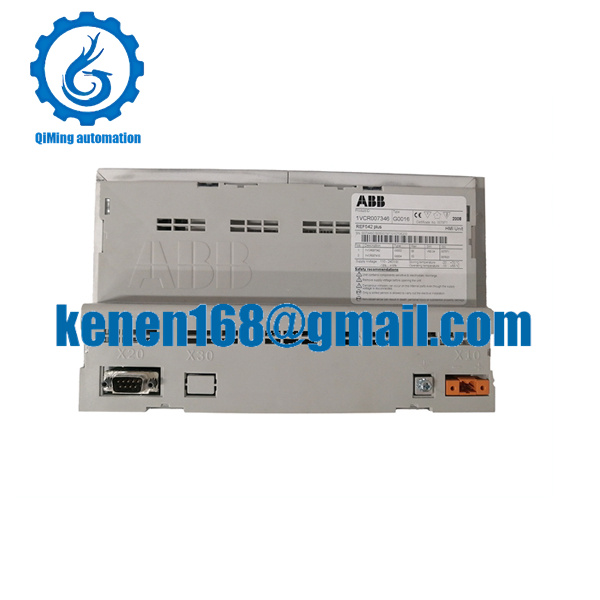

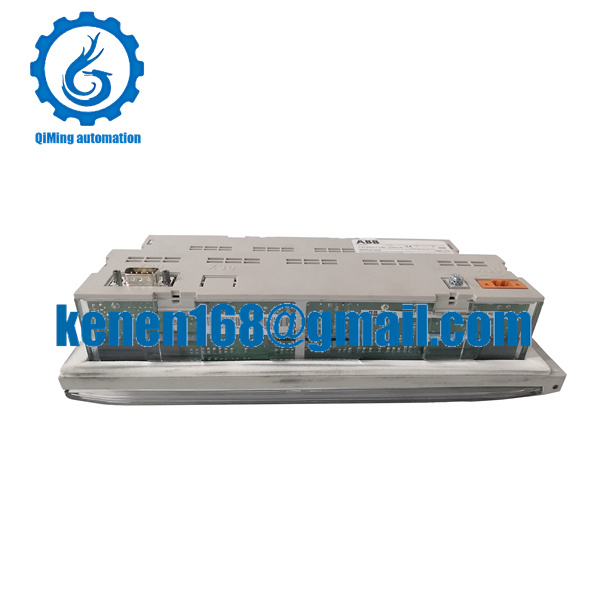

The REF542plus housing for the Central Unit is made from sheet aluminium. Its exterior is chromatized both to protect the housing against corrosion and to gain the shielding against EMC disturbances. The Central Unit allows a safe integration into a switchboard.A standard and a wide case version, as shown in the following figures are available. In the standard case version, two binary I/O boards and an optional communications board can be used. The wide case version contains an additional binary I/O board and the analog output board. Example of REF542plus base version with one mechanical binary I/O version 3 (BIO3).Extension up to two additional mechanical binary I/O version 3 (BIO3) possible. Other configurations of the analog input board available, e.g. mixed configuration for input transformers and sensors connection.
ABB REF542PLUS control and protection unit
ABB REF542PLUS control and protection unit
REF542plus can have at most 8 analog input channels. They can be from instrument transformers of from non-conventional sensors. Also mixed combinations are possible,with some inputs from instrument transformers and others from sensors. The table below lists all the supported combinations.CT (EF) is a special input transformer to measure the earth fault current in isolated or with Petersen coil compensated system by means of cable current transformer. For the setting of the related analog input the primary nominal current of the cable current transformer must be divided by 5.The connections to the Compel connectors for the analog input board are shown in the next following figures. The connection of AI07 and AI08 can principally be derived,depending on the input transformer used.
ABB REF542PLUS control and protection unit
ABB REF542PLUS control and protection unit
The left half of the LCD display is reserved for the Single Line diagram. The right half is used to display the appropriate menu or submenu as determined by the user. Two different electronic keys with different access rights are available. Each of the keys are programmed to permit either:protection functions parameterization of the mode selection of the control functions Three freely programmable LED bars have been provided on the front of the HMI Control
Unit. Each LED bar consists of ten green and two red LEDs and is user configurable to display any required measurement value. The red LEDs are used to indicate values above the rated value.The functions of the REF542plus can be tailored to the system requirements via a userspecific configuration. The user-specific configuration is loaded during commissioning.For that purpose the configuration computer, normally a personal computer (notebook) running Windows NT, is connected to the optical interface on the front side of the HMI Control Unit.
ABB REF542PLUS control and protection unit pdf

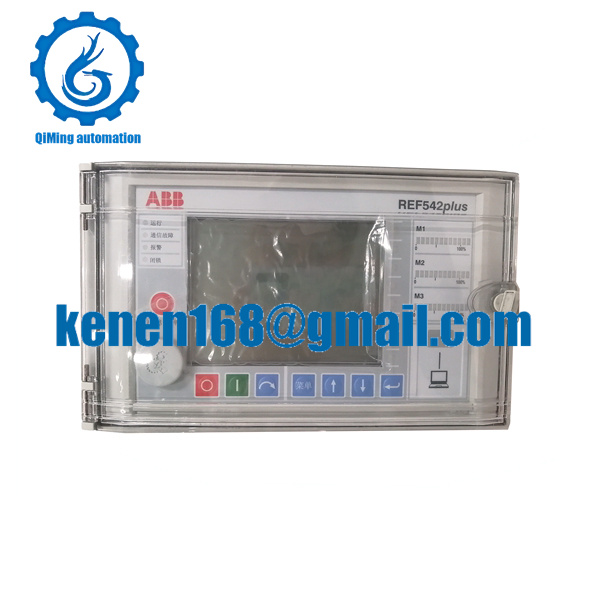

The HMI Control Unit, as shown in figure 5, features a back-illuminated Liquid Crystal Display (LCD), eight push buttons, several LEDs and an electronic key interface. The language of the display can be selected via the related configuration software tool, which
is also used to define the protection and the control scheme.
ABB REF542PLUS control and protection unit
♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
