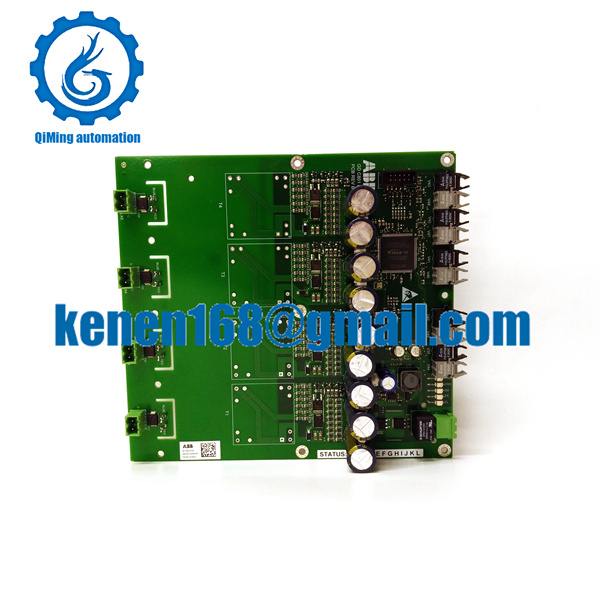

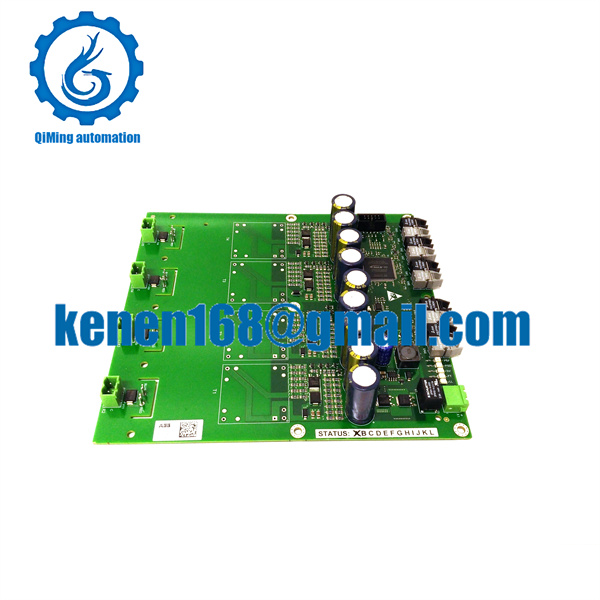

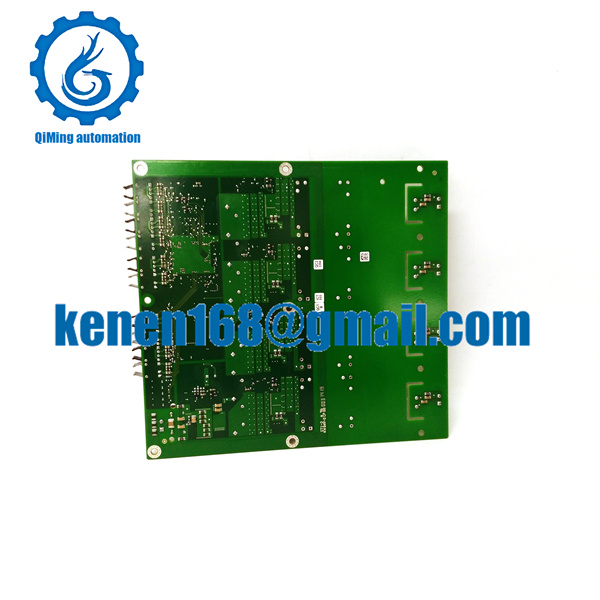

GDC801B101 3BHE051592R0101 ABB
This module has 16 digital outputs. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A.The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the
ModuleBus. The outputs are current limited and protected against over temperature. If the outputs are overloaded the output current will be limited。
GDC801B101 3BHE051592R0101 ABB
GDC801B101 3BHE051592R0101 ABB
Features and benefits
1.16 channels for 24 V d.c. current sourcing outputs
2.2 isolated groups of 8 channels with process voltage supervision
3.Output status indicators
4.OSP sets outputs to predetermined state upon error detection
5.Short-circuit protection to ground and 30 V
6.Over-voltage and over-temperature protection
GDC801B101 3BHE051592R0101 ABB
GDC801B101 3BHE051592R0101 ABB
General info
Article number GDC801B101 3BHE051592R0101
Type Digital Output
Signal specification 24V d.c. (12 – 32 V d.c.), 0.5 A
Number of channels 16
Signal type Current sourcing, current limiting
HART No
SOE No
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800
Detailed data
Isolation Groupwise isolated from ground
Output load < 0.4 Ω
Current limiting Short circuit proof current limited output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation Typ. 2.1 W
Current consumption +5 V Modulebus 80 mA
GDC801B101 3BHE051592R0101 ABB PDF
GDC801B101 3BHE051592R0101 ABB
♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
