IOC4T PNR200-560-000-111 VIBRO-METER input/output card

VM600 IOC4T PNR200-560-000-111 VIBRO-METER: Overview and Technical Specifications
Brand and Model Information
Brand: VIBRO-METER (a Meggitt product line)Model: VM600 IOC4TOrdering Number (PNR): 200-560-000-111Product Type: Input/Output Card for VM600 Series MPC4 Machinery Protection Card
Overview
The VM600 IOC4T PNR200-560-000-111 serves as a signal interface card for the VM600 series MPC4 machinery protection card, operating in slave mode and communicating with the MPC4 via an Industry Pack (IP) interface through connector P2. It is installed in the rear of a VM600 rack (ABE04x or ABE056) directly behind its corresponding MPC4 card and connects to the rack backplane via two connectors. This card facilitates the connection of raw dynamic (vibration) and speed signals from sensors to the MPC4, while providing processed signals back to external control systems through its front panel screw-terminal connectors. It is highly suitable for machinery monitoring and protection applications in various industrial sectors.
Physical Specifications
Dimensions: Height – 6U (262 mm, 10.3 in); Width – 20 mm (0.8 in); Depth – 125 mm (4.9 in)Weight: Approximately 0.25 kg (0.55 lb)Connectors: Three 16-contact screw-terminal connectors (J1, J2, J3)Mounting: VM600 rack (ABE04x or ABE056), installed behind MPC4 card

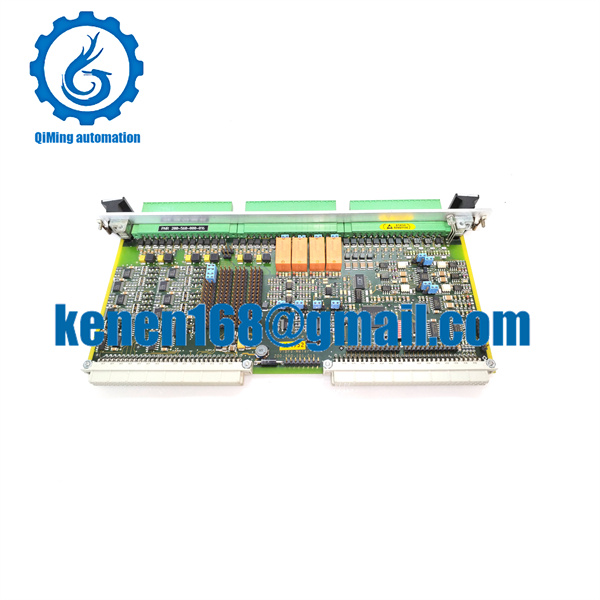

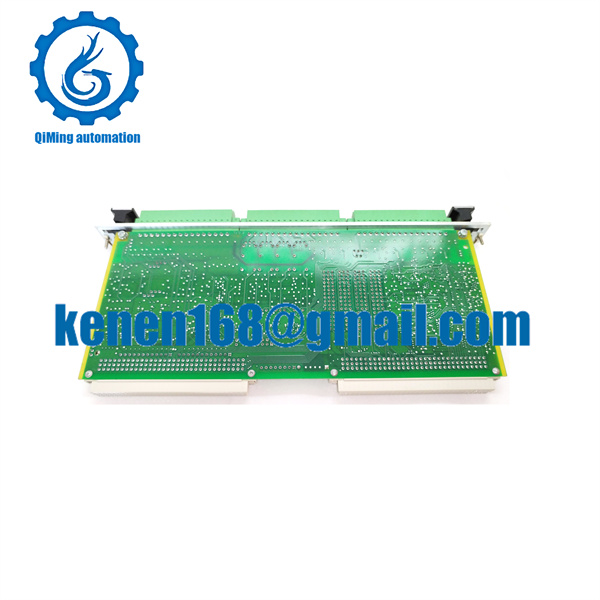

IOC4T

Key Features
Equipped with 4 dynamic signal inputs and 2 tachometer (speed) inputs
Provides 4 analog DC outputs (0 to 10 V or 4 to 20 mA, jumper selectable)
Features 4 local alarm relays (configurable as NC or NO contacts)
Includes 32 fully-programmable open-collector outputs for IRC4 and RLC16 relay cards (jumper selectable)
Offers buffered “raw” sensor signal outputs for all 4 dynamic measurement channels
Incorporates 3 DSI control signal inputs: Alarm Reset (AR), Danger Bypass (DB), and Trip Multiply (TM)
All inputs and outputs have EMI protection and meet EMC standards
Supports live insertion and removal (hot-swappable)
Software configurable via RS-232 or Ethernet connection using VM600 MPSx software
Hardware configurable using jumpers on the MPC4/IOC4T card pair
Status indicator (LED) for SLOT ERROR detection
Available with conformal coating for enhanced environmental protection
Technical Specifications
Inputs
Dynamic Signal Inputs: 4 channels for vibration measurement, filtered for EMI protection (conforms to EC standards)
Speed/Phase Reference Inputs: 2 tachometer channels, filtered for EMI protection (conforms to EC standards)
DSI Control Signal Inputs: 3 digital inputs (AR, DB, TM) for alarm reset, danger bypass, and trip multiply functions
DSI Input Principle: Detection of open or closed circuits
Alarm Reset Input: Edge-sensitive, requiring high-to-low transition to activate reset

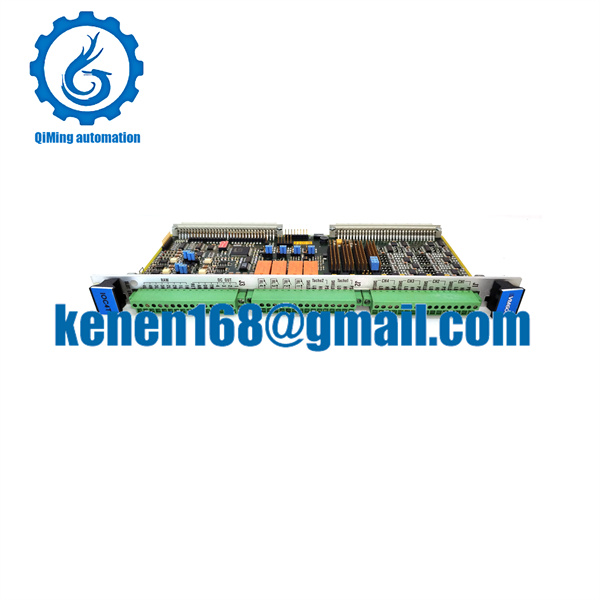

IOC4T

Outputs
Analog DC Outputs: 4 channels (one per dynamic signal channel), configurable as 0 to 10 V voltage output or 4 to 20 mA current output (jumper selectable); actual current output range is slightly wider at 2 to 23 mA
Analog Output Accuracy: ≤ ±1.5%
Analog Output Linearity Error: ≤ ±0.5%
Analog Output Load Capacity: > 100 kΩ for voltage output; < 325 Ω for current output
Buffered “Raw” Sensor Outputs: 4 channels for dynamic measurement signals
Alarm Relays: 4 relays (RL1 to RL4), each with 1 x NC or 1 x NO contact (user configurable)
Relay Type: PE014005
Relay Nominal Ratings: 250 VAC, 5 AAC, 1250 VA
Relay Timing: Operate/release/bounce time typically 8/8/6 ms
Relay Insulation: 1000 VAC between open contacts; 4000 VAC between contact and coil
Relay Mechanical Life: 15 x 10^6 operations
Relay Electrical Life: > 10^5 operations
Open-Collector Outputs: 32 fully-programmable outputs for IRC4 and RLC16 relay cards
Power Requirements
Power Source: VM600 rack power supply
Supply Voltages: +5 VDC and ±12 VDC
Power Consumption: +5 VDC supply – 1.5 W; ±12 VDC supply – 0.7 W plus 0.25 W per current output used
Environmental Specifications
Operating Temperature: −25 to 65 °C (−13 to 149 °F)
Storage Temperature: −40 to 85 °C (−40 to 185 °F)
Operating Humidity: 0 to 90% non-condensing
Storage Humidity: 0 to 95% non-condensing
Conformity: CE marking, EAC marking, RoHS compliant
Electromagnetic Compatibility: EN 50081-2, EN 50082-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4, TR CU 020/2011
Electrical Safety: IEC/EN 61010-1, TR CU 004/2011
Vibration Resistance: IEC 60255-21-1 (Class 2)
Safety Integrity Level: SIL 1 according to IEC 61508
