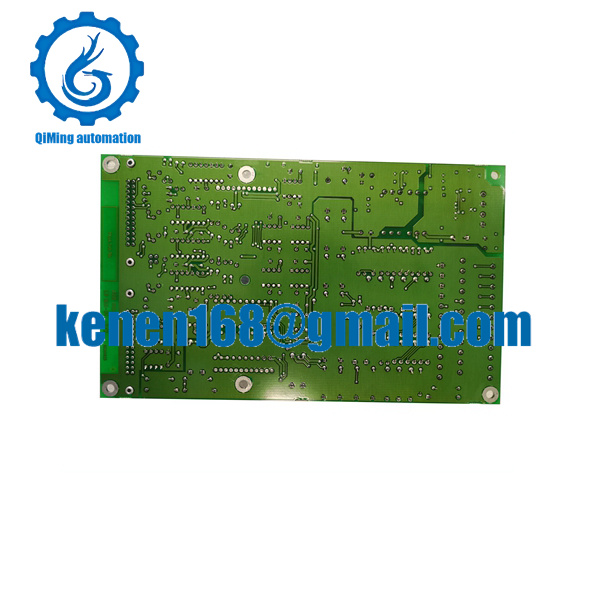

Steps to Start the ABB LDMUI-01 Module
1. Physical Installation and Power-Up
- Mount the module securely on a DIN rail (EN 60715 compliant) in a controlled environment, maintaining adequate ventilation (≥10 cm clearance) to avoid overheating.
- Connect the power supply (typically 24V DC nominal) to the designated terminals, verifying polarity to prevent reverse-voltage damage.
2. Communication Interface Configuration
- Set up the Modbus protocol via RS485 or Ethernet, enabling remote device interrogation and data transmission; this includes assigning unique addresses to avoid conflicts on the network.
- Configure parameters such as baud rate and signal filtering using compatible software (e.g., ABB Control Builder), ensuring alignment with system requirements like automatic range changes or background gas compensation.
3. Initialization and Functional Testing
- Power on the module sequentially and monitor LED indicators (e.g., green for normal operation); if no LEDs are present, use diagnostic tools to confirm active status.
- Perform signal validation by connecting sensors to input channels and checking data output via interfaces like SATA or USB; adjust settings (e.g., measurement ranges) for accuracy and stability.
4. Integration and Runtime Verification
- Integrate the module with host systems (e.g., industrial PLCs or DCS controllers) through Ethernet or PCIe interfaces, enabling real-time data logging or control commands.
- Test fault diagnostics by simulating errors (e.g., disconnected sensors) and validating alerts via indicators or output signals to ensure reliability in unmanned operations.
