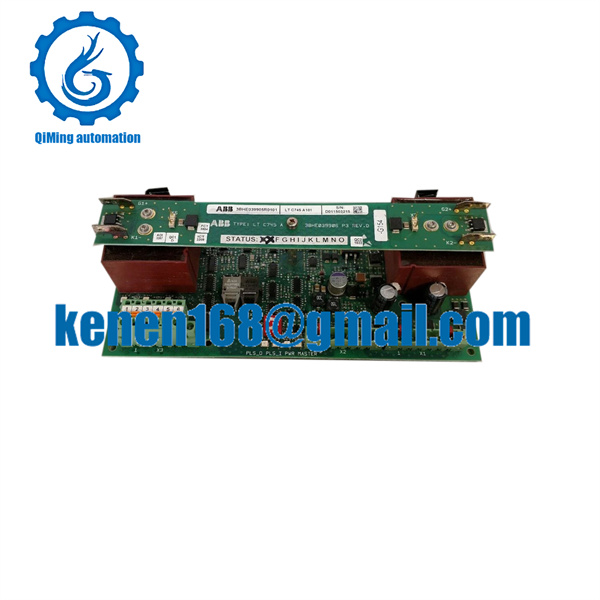

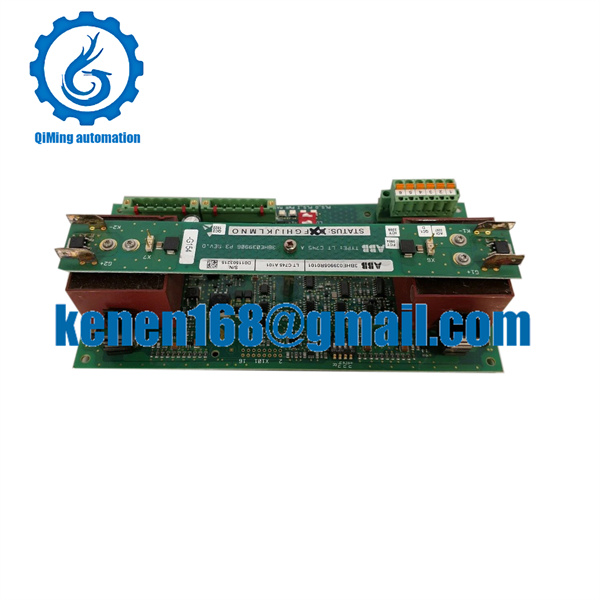

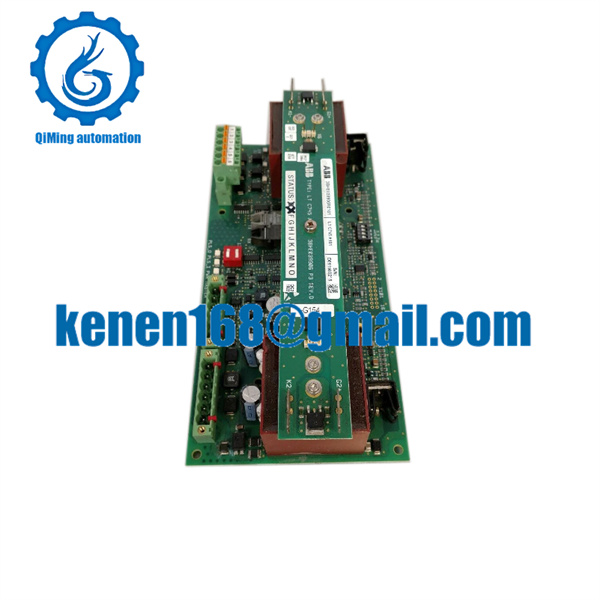

LTC745A101 3BHE039905R0101 ABB

The application scope of  LTC745A101 3BHE039905R0101 ABB

The LTC745A101 module, identified by part number 3BHE039905R0101, is an ABB voltage drive circuit board primarily used in industrial automation systems, such as DCS (Distributed Control Systems) and motor control applications。As detailed operational procedures are not explicitly covered in the referenced sources, the following guidance synthesizes typical practices for similar ABB modules. For precise execution, always consult the official ABB manual or technical support:

1. ‌Module Installation‌

   • Ensure the system is powered off and grounded to prevent electrostatic discharge.
   • Secure the LTC745A101 module in a compatible rack or chassis, aligning with slot specifications for DCS or PLC environments.

2. ‌Hardware Configuration‌

   • Connect the module via standard interfaces (e.g., RS-232 serial ports or Ethernet) using appropriate cables. Verify physical connections for integrity.
   • Apply power gradually, monitoring initial startup indicators (e.g., LED status lights) to confirm successful initialization.

3. ‌Software Setup and Calibration‌

   • Use ABB-approved configuration tools (e.g., AppManager service software or similar utilities referenced for related modules) to load firmware and adjust parameters. This typically involves:
     • Accessing the module’s IP address or serial interface.
     • Uploading configuration files to set voltage thresholds, response times, and safety tolerances.
   • Calibrate input/output signals using diagnostic software to ensure accuracy, especially for voltage regulation or motor control tasks.

4. ‌Testing and Operation‌

   • Perform functional tests under low-load conditions first. Simulate control commands (e.g., via HMI or SCADA systems) to validate responses.
   • Monitor for stability, checking for faults such as overheating or signal drift. Implement failsafe protocols if anomalies occur.

5. ‌Maintenance and Troubleshooting‌

   • Regularly inspect for physical wear or environmental damage (e.g., temperature extremes outside 0–50°C can cause operational errors).
   • For issues like unresponsive modules, re-seat connections, reboot the system, or reload firmware from backups.

LTC745A101 3BHE039905R0101 ABB

♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
