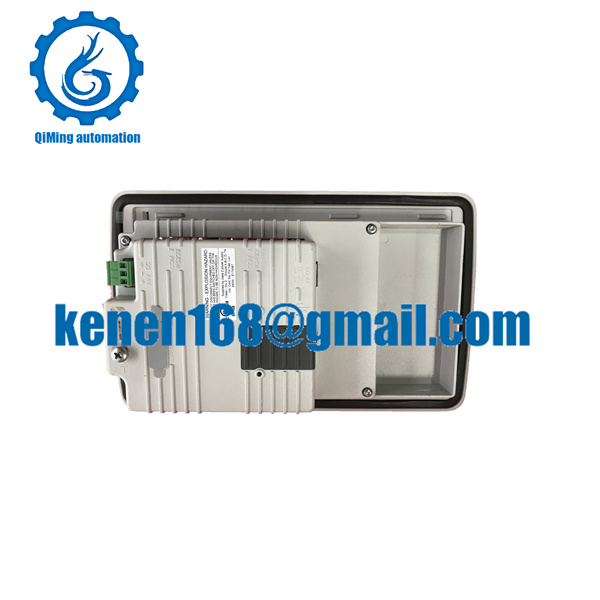

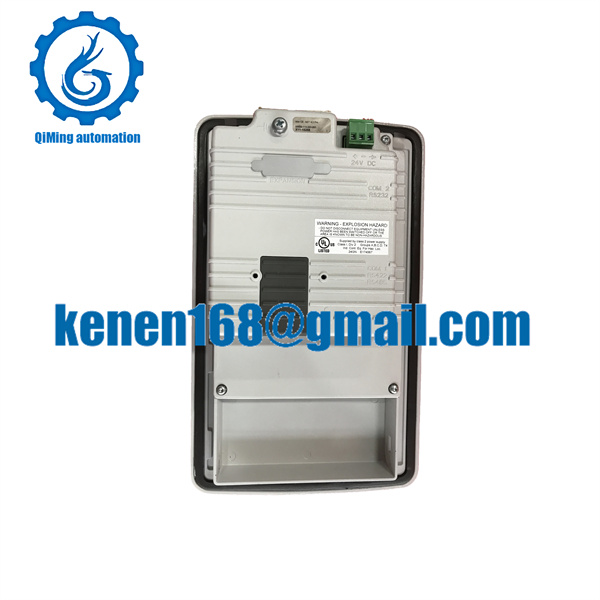

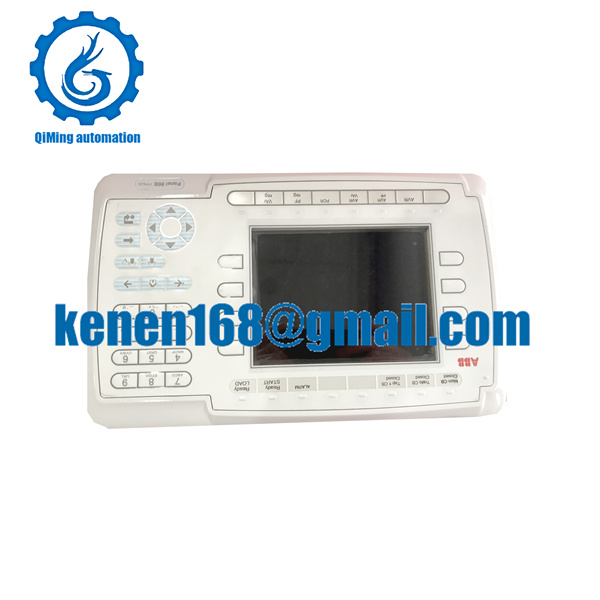

PP826 3BSE042244R1 Control panel SUPPLY BY ABB
The USB Type A connector on CB810 is connected to a USB Host port on a PC.Crossover Ethernet patch cable (twisted pair cable) with RJ45 connectors is connected between the Ethernet RJ45 port on CB810 and the Ethernet RJ45 port on the Panel 800.Follow the instructions in the manual for the operator panel to make settings for the Ethernet / TCP/IP project transfer in the configuration tool.Technical Specifications：
• Single chip USB to 10/100 Mbps Fast Ethernet.
• Compliant with USB specifications 1.0, 1.1, and 2.0.
• Full/High Speed USB Device with bus power capabilities.
• IEEE 802.3u 100BASE-T, TX, and T4 compatible.
• Embedded 7K*16 bit SRAM, 256*16 bit SRAM and 8 FIFOs.
• Supports both full-duplex or half-duplex operation Fast Ethernet.
• Supports suspended mode and remote wake up.
• Optional PHY power down mode for power savings.
• Supports automatic loading of Ethernet ID, USB Descriptors and Adapter Configuration from EEPROM on power-on initialization.
• Ethernet PHY loop-back diagnostic capability.
PP826 3BSE042244R1 Control panel SUPPLY BY ABB
PP826 3BSE042244R1 Control panel SUPPLY BY ABB
1. The operator panel’s mounting clamps do not provide a secure grounding connection between the panel and the device cabinet.
2. Connect a 2.5 mm2 wire between the operator panel’s quick-connect plinth and the panel chassis.
3. Connect a 6 or 4 mm2 wire or grounding braid between the panel’s chassis and the closest grounding point on the door.
4. Connect a strong but short grounding braid between the door and the device cabinet.
5. Twist the cables onto the 24 V DC feed.
6. A ferrite core suppresses disturbances to the 24 V feed.
2 turns around the ferrite core provide 4 times the suppression of 1 turn.
3 turns around the ferrite core provide 9 times the suppression of 1 turn.
PP826 3BSE042244R1 Control panel SUPPLY BY ABB
PP826 3BSE042244R1 Control panel SUPPLY BY ABB
The grounding wires should be short and the conductor should have a large area.A long, thin grounding wire has a very high impedance (resistance) at high frequencies and will not guide disturbances to the ground.Multi-wire conductors are better than single wire conductors with the same area.A braided conductor wire with the same area is even better.The best is a short, thick grounding braid.With longer distances, there is a risk that the ground potential may be different. In that case, the shield should only be connected at one end. A good alternative is to connect the other end of the shield to the ground via a 0.1 uF/250 V plastic capacitor. Both ends are then connected to the ground in terms of HF, but only connected to the ground at one end in terms of LF, thus avoiding the 50 Hz
grounding loops.
PP826 3BSE042244R1 Control panel SUPPLY BY ABB
♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
