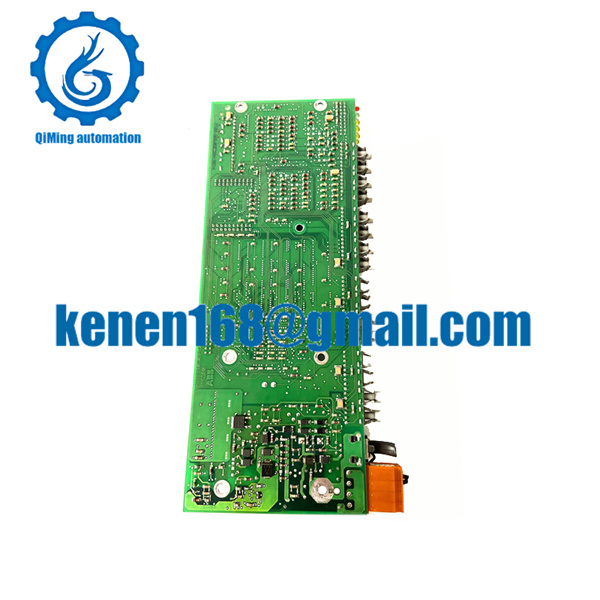

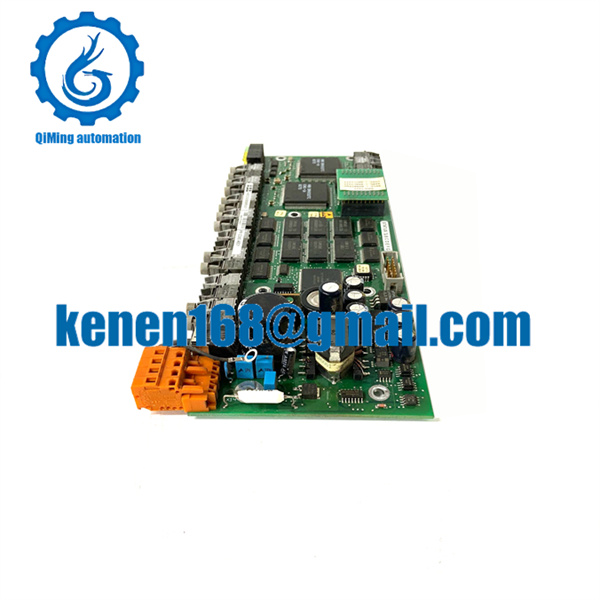

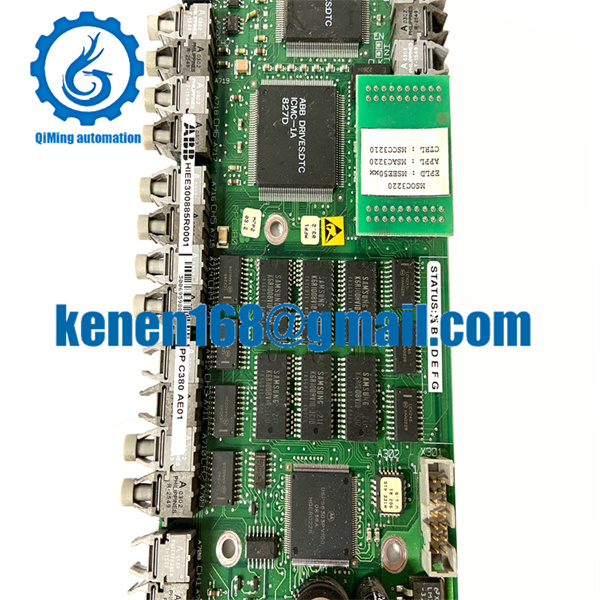

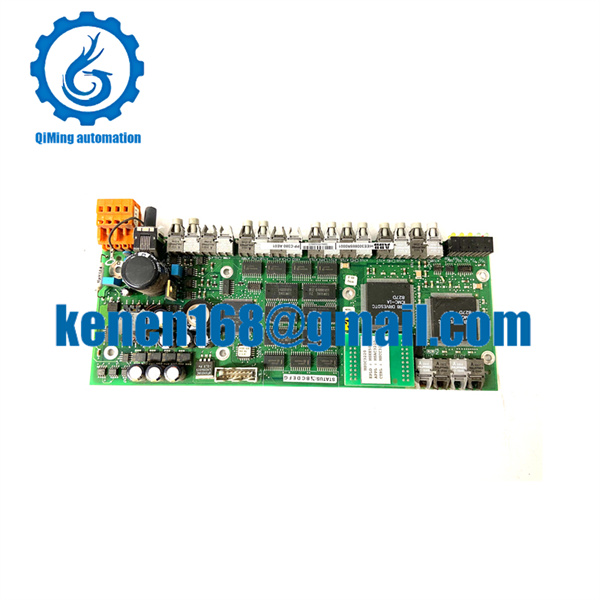

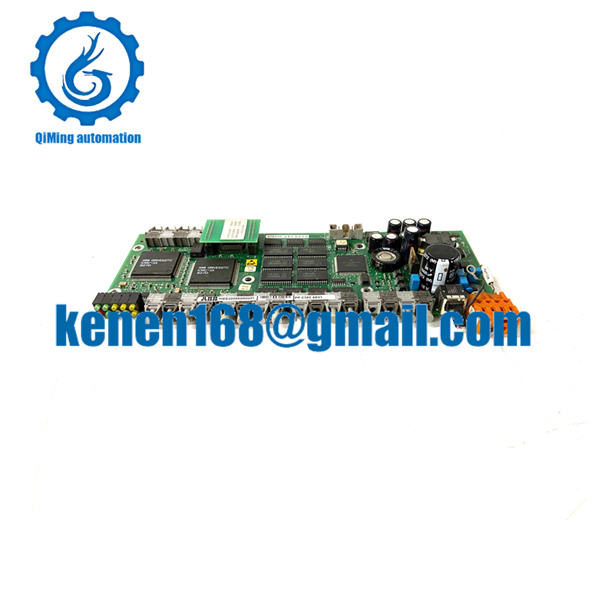

PPC380AE01 HIEE300885R0001 ABB

Pre-Installation Requirements‌

1. ‌Environmental Limits‌

   • Operating temp: -20°C to +60°C (derate above 55°C)
   • Storage temp: -40°C to +85°C
   • Humidity: 5-95% non-condensing (IEC 60068-2-30)
   • Altitude: ≤2000m (install derating kit above 2000m)

2. ‌Safety Precautions‌

   • De-energize entire control cabinet (LOTO verified)
   • ESD protection: Use dissipative mat + wrist strap (1MΩ resistance)
   • Disconnect all field power sources (>5τ discharge)

 ‌Mechanical Installation‌

‌Panel Mounting Specifications‌

‌Installation Steps‌:

1. Remove transit protection film from display
2. Insert unit into panel cutout from front
3. Secure mounting clamps clockwise (45° incremental tightening)
4. Verify IP66 seal compression (gasket deflection 0.8±0.1mm)

Maintain ≥50mm clearance to heat sources (transformers, drives)

 ‌Electrical Connections‌

‌Terminal Specifications‌

‌Grounding Requirements‌:

1. Protective Earth (PE): 4mm² green/yellow to cabinet star point


2. Functional Ground (FE): 1.5mm² to isolated ground bus (impedance ≤0.2Ω)
3. Shield Ground: Drain wires terminated at X3/X4 metal housings




‌Power Up & Initialization‌

1. ‌Pre-Energization Checks‌

   • Verify insulation resistance (>100MΩ @ 1000VDC between circuits)
   • Confirm voltage selector (X1) set to correct range (100V/230V jumper)

2. ‌Boot Sequence‌

   textCopy Code
   1. Apply power - LED flashes amber (3s)


2. System POST completes - LED steady green


3. Initialize touchscreen: Follow crosshair calibration


️ ‌Expansion Module Integration‌

For HIEE300885R0001 (EBUS Backplane):

1. ‌Module Installation‌

   • Slide EBUS carrier onto DIN rail (EN 60715)
   • Engage PPC380AE01 to leftmost slot until latch clicks
   • Add I/O modules rightward (max. 8 slots)

2. ‌Configuration‌

   textCopy Code
   Menu Path: System → Bus Config → Auto-scan devices
Address assignment:
Slot 0: Controller (fixed)
Slot 1: DI16 (e.g.)
Slot 2: AO4 (e.g.)


️ ‌EMC & Safety Compliance‌

Commissioning Verification‌

1. ‌Operational Tests‌

   • Execute diagnostic: SYS+ESC+RESET → Device test suite
   • Validate analog I/O: ±0.1% FS accuracy @ 25°C
   • Check heat dissipation: IR thermometer ≤68°C at full load

2. ‌Documentation‌

   • Affix CE/UL certification label (included)
   • Record in commissioning log:
     textCopy Code
     Device: PPC380AE01 HIEE300885R0001
S/N: [From rear label]
Firmware: ≥V3.1.8 (required for EBUS V2)
Date: [YYYY-MM-DD]


♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
