REF615 HBFFAEAGNDA1ABA11G – ABB Relion Feeder Protection Relay
Overview
The REF615 HBFFAEAGNDA1ABA11G is a high-performance feeder protection relay from ABB’s Relion product series, engineered for medium-voltage power distribution networks. As a core device in power system protection and control, it integrates comprehensive protection, measurement, control, and communication functions to safeguard feeders, transformers, and other power equipment against faults such as overcurrent, short circuit, and earth fault. The model’s extended suffix indicates enhanced configuration with advanced communication protocols, industrial-grade environmental adaptability, and redundant design, making it suitable for critical power supply scenarios in utilities, petrochemicals, data centers, and industrial plants. With ABB’s proven protection algorithms and user-friendly configuration interface, it ensures reliable fault isolation and minimizes power outage duration, supporting stable operation of power grids.

Technical Specifications
Brand & Manufacturer
Produced by ABB, a global leader in power and automation technologies. The Relion series, to which the REF615 belongs, is renowned for its modular design, high reliability, and seamless integration capability, widely adopted in power generation, transmission, and distribution networks worldwide. ABB’s power protection devices are trusted for their compliance with international standards and ability to adapt to diverse industrial operating conditions.
Model Number
Model: REF615 HBFFAEAGNDA1ABA11G, part of ABB’s Relion REF615 feeder protection relay series. The alphanumeric suffix encodes key configurations: HBFF denotes advanced hardware version with redundant power supply and enhanced input/output capacity;AEAG indicates integrated Ethernet communication (IEC 61850) and RS485 ports; NDA1 specifies industrial-grade environmental protection and extended temperature range; ABA11G represents compliance with global certifications (IEC/UL) and local grid standards. The model is also referred to as ABB REF615 feeder relay in simplified documentation.
Physical Specifications
Dimensions
Adopting ABB Relion series standard panel-mount design, the dimensions are145 mm × 145 mm × 210 mm (5.71 in × 5.71 in × 8.27 in). This compact form factor is optimized for installation in switchgear and control cabinets, enabling space-efficient integration with other power monitoring and control devices such as meters, contactors, and PLCs.
Weight
Net weight is approximately 2.5 kg (5.51 lbs) without accessories, constructed with high-strength metal housing to resist mechanical impact. Transportation weight (including original packaging) is around 4.0 kg, facilitating easy handling during on-site installation and maintenance.
Mounting & Housing

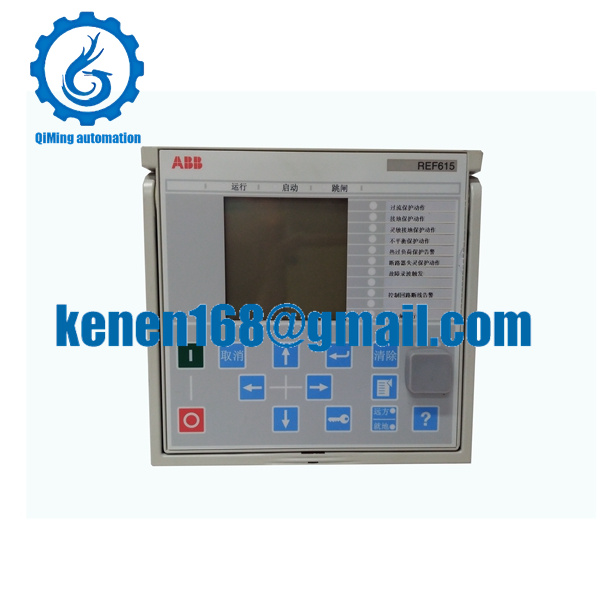

Designed for standard panel mounting (compliant with IEC 60601-1) and optional DIN rail mounting with adapter. The housing features a rugged metal structure with an IP42 protection rating for the front panel, effectively preventing dust and water splashes in industrial switchgear environments. The front panel is equipped with a 4-line LCD display and LED indicators for intuitive monitoring of operation status, fault alerts, and power conditions.
Core Features
1. Comprehensive Protection Functions: Equipped with overcurrent (50/51), earth fault (54/59N), overvoltage (59), undervoltage (27), and thermal overload protection, supporting both phase and ground fault detection with adjustable pickup values and time delays to match diverse grid configurations.
2. Advanced Measurement Capabilities: Delivers precise measurement of three-phase current, voltage, power (active/reactive/apparent), energy, power factor, and frequency with 0.2% class accuracy, providing real-time data for grid optimization and energy management.
