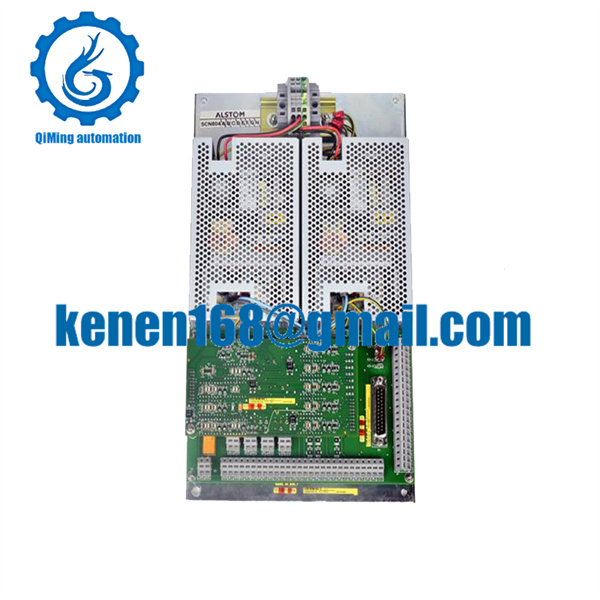

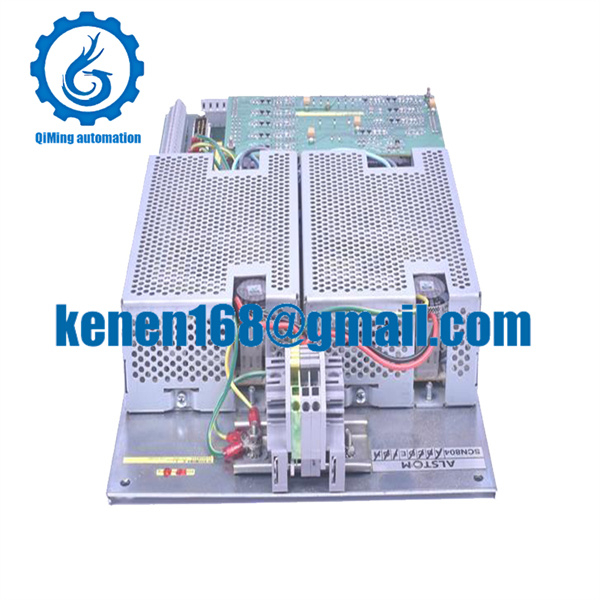

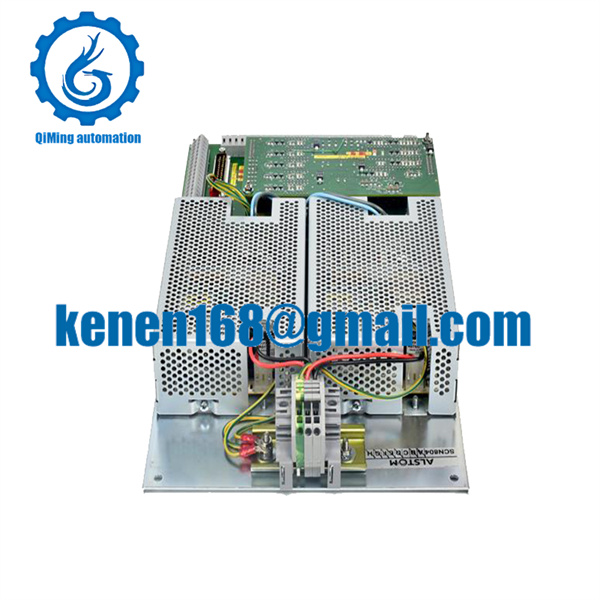

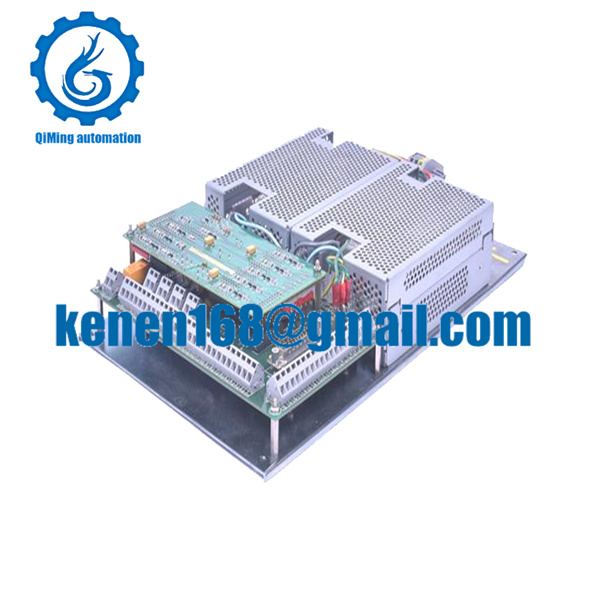

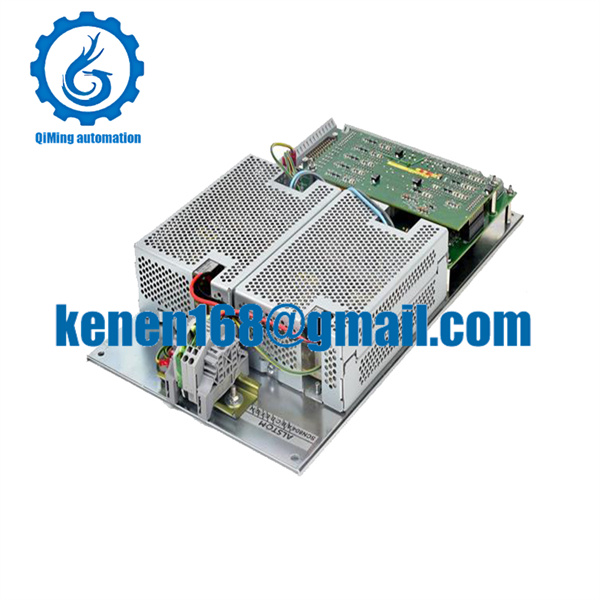

SCN804E ALSTOM PLC Module
Functional Architecture
-
Triple-Channel Design
- 3 isolated input channels with independent signal processing chains
- Per-channel operations:
▸ Thermoelectric voltage acquisition
▸ Linearization & cold-junction compensation (CJC)
▸ 16-bit signed integer conversion (LSB = 0.125°C/°F)
-
Data Integrity Assurance
- Mid-value selection algorithm for cross-processor consensus
- Scan-synchronous value validation
SCN804E ALSTOM PLC Module
SCN804E ALSTOM PLC Module
Configuration & Diagnostics
| Feature | Isolated Module | Non-Isolated Module |
|---|---|---|
| Burnout Detection | Programmable via TriStation 1131 (upscale/downscale) | Field termination dependent |
| Fault Indication | Cold-junction LED | Unified Fault LED |
| Compensation | Triplicated CJC transducers | Triplicated CJC transducers |
Failure Modes Handling:
- Burnout condition → Outputs ±32,767 (full-scale saturation)
- Overrange input → Forces +32,767 output
SCN804E ALSTOM PLC Module
SCN804E ALSTOM PLC Module
Operational Enhancements
-
Self-Monitoring
- Automatic 5-second calibration cycle:
▸ Internal precision voltage reference validation
▸ Reference junction compensation update
- Automatic 5-second calibration cycle:
-
Fault Containment
- Channel-to-channel galvanic isolation (IEC 61000-4)
- Continuous per-channel diagnostic monitoring
-
Maintenance Features
- Hot-swappable design (online replacement capability)
- Mechanical keying system (prevents chassis misalignment)
- Remote termination via dedicated interface cable
SCN804E ALSTOM PLC Module
a. Later versions of NITC firmware (meta 4873 or greater) freeze inputs for one second upon detection
of hot-spare insertion.
b. If the input readings differ by a minimum of 0.5 percent of full scale and continue for a minimum
period of 256 input samples, the probability of a fault increases.
SCN804E ALSTOM PLC Module
Competitive Value Proposition
-
Unbeatable Market Pricing
- First-to-market pricing strategy with aggressive cost optimization
-
Logistics Excellence
- Guaranteed on-time delivery framework with premium customer care protocols
-
Quality Assurance Commitment
- 100% OEM-grade components with zero defect manufacturing certification
- ISO 9001-compliant production quality controls
-
Comprehensive Support Ecosystem
- Complimentary lifetime technical support package
- SLA-backed 24/7 issue resolution (4-hour response guarantee)
-
Operational Cost Efficiency
- Streamlined maintenance protocols reducing TCO by 30-40%
- Predictive maintenance integration for budget-optimized operations
-
Extended Warranty Protection
- Industry-leading 12-month comprehensive warranty
- Global coverage including parts/labor with no hidden costs
