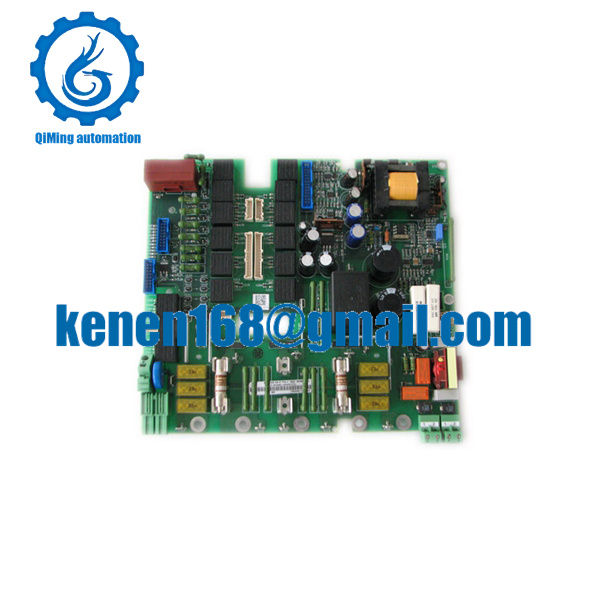

SDCS-FEX-4 ABB plc NEW
DCS800-R Upgrade Kits
Conditions caused by the application
In case of an additional application three scenarios are possible
Application program located in the APC1 or APC2 of a DCV 700.
APC1: No interface available
APC2: Optical connection board YPQ112 is to add between APC2 and SDCS-COM81 and control logic is to modify
The application program is as function blocks in the DCS 500 or DCS 500B. DriveAP Programmimg or CoDeSys Programming
The application program is located in the AMC board of a DCS 600 see APPLIC NAME(4.03) CoDeSys Programming
Master-follower configurations
Master-follower via SDCS-COM-8 should be used for upgrading a DCS 600. The fiber optic cable can be reused.
Master-follower via DCSLink should be used for upgrading a DCS 500 or DCS 500B.
Hard-Parallel configuration
Additional engineering is needed. Please contact your local ABB .
SDCS-FEX-4 ABB plc NEW
SDCS-FEX-4 ABB plc NEW
Installation of the PE1354B fieldbus converter requires small modifications in the overriding control systeme.g. MP200. Furthermore the removal of the APC controller requires adaption of the existing APC software program either into the overriding system or into the drive via DriveAP or CoDeSys. Availability of the right software tools and programming skills are to ensure. Manual with detailed information
For further information regarding hardware, assembling and commissioning see Manual 3ADW00256R0101
Parameter settings
After upgrading parameters have to be adjusted due to different parameter groups in DCS500/DCS600 and DCS800.
For parameter comparison see document 3ADW000405R0201
SDCS-FEX-4 ABB plc NEW
SDCS-FEX-4 ABB plc NEW
For the communication with overriding control system additional interface devices are toimplement.
See next slides
SDCS-CON-1 board is to replace by SDCS-CON-4 including SDCS-COM-81,SDCS-DSL-4 and panel In case of frame size C3 the existing SDCS-PIN51 is to be replaced by a new SDCS-PIN-51
Not supported parts
all old field exciters for DCS 500, DCS 500B and DCS 600,
DCS-IOE-1
control panels CDP 310 and CDP 311
Nxxx fieldbus adapter used with DCS 500
APC1 used for DCV 700
Reuse of APC2 requires modifications in the control logic and additional hardware
All old tools like DDCTool, CMTTool,DriveWindow 1.x and DriveWindow 2.1
SDCS-FEX-4 ABB plc NEW
♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
