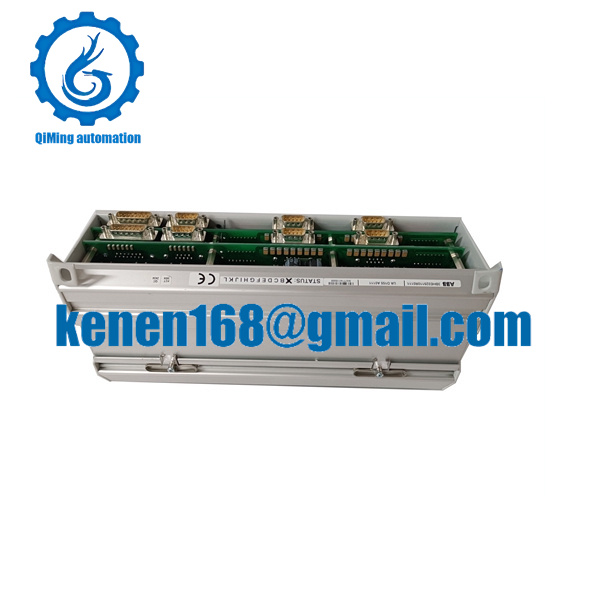

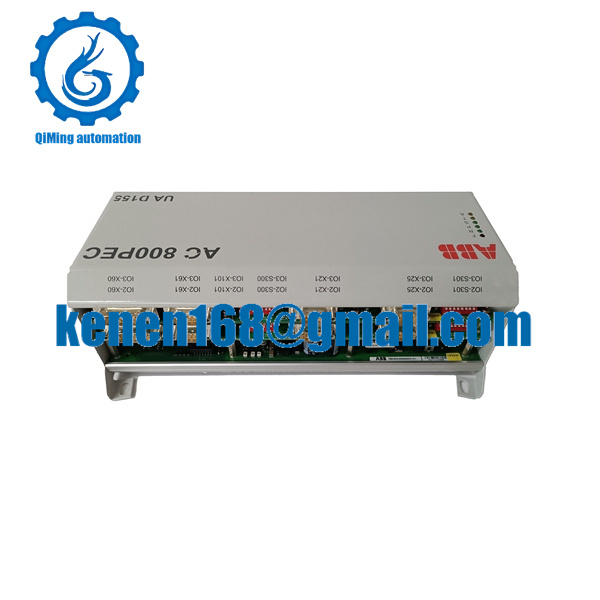

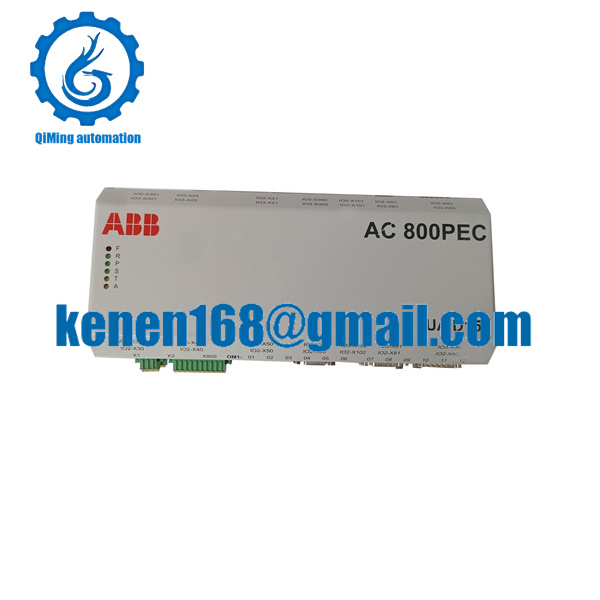

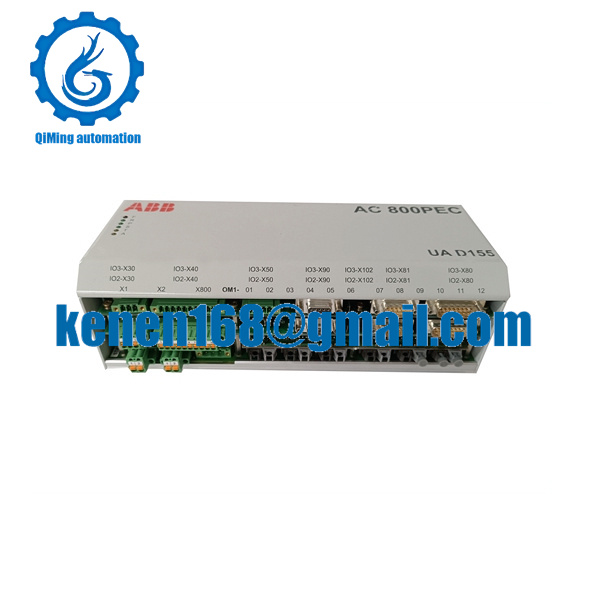

Debugging Procedure for ABB UAD155A0111 3BHE029110R0111 Module
-
Power-on Check
- Verify proper power supply voltage (typically 24V DC) meets specifications1
- Confirm all LED indicators show normal status during initialization5
-
Communication Setup
- Establish connection via supported interfaces (RS-485/Modbus/Profibus depending on configuration)15
- Check communication parameters (baud rate, parity, stop bits) match system requirements2
-
Parameter Configuration
- Load default parameters from backup or manufacturer specifications1
- Configure control modes (voltage/current/frequency/power) according to application needs12
-
I/O Testing
- Verify all input signals (sensors/feedback) are correctly received3
- Test output signals to connected devices (actuators/motors) for proper response23
-
Protection Function Verification
- Simulate fault conditions to test overvoltage/overcurrent protection1
- Confirm alarm thresholds and shutdown sequences operate as designed12
-
Performance Calibration
- Adjust control loop parameters (P/I/D values) for optimal response2
- Validate measurement accuracy against reference instruments3
-
System Integration Test
- Verify seamless operation with other DCS/PLC components4
- Conduct 24-hour continuous operation test under load conditions
UAD155A0111 3BHE029110R0111 ABB pdf
♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦♦…♦
